Collapsible Paper IBC is an effective way for bulk liquid storage and transport, which compared to drums, returnable IBCS,
and bottle-in- cage IBCs, can creates obvious cost-saving for users. Collapsible Paper IBC is a one-way disposable smart
packaging for medium volume liquid transport, it reduces filling or discharging, handling costs and free up storage space,
and there is no return or clean cost after liquid discharge at destination.

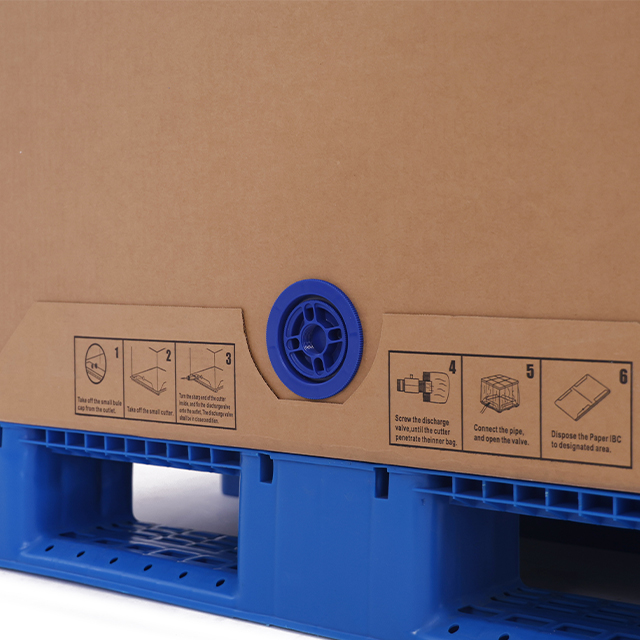

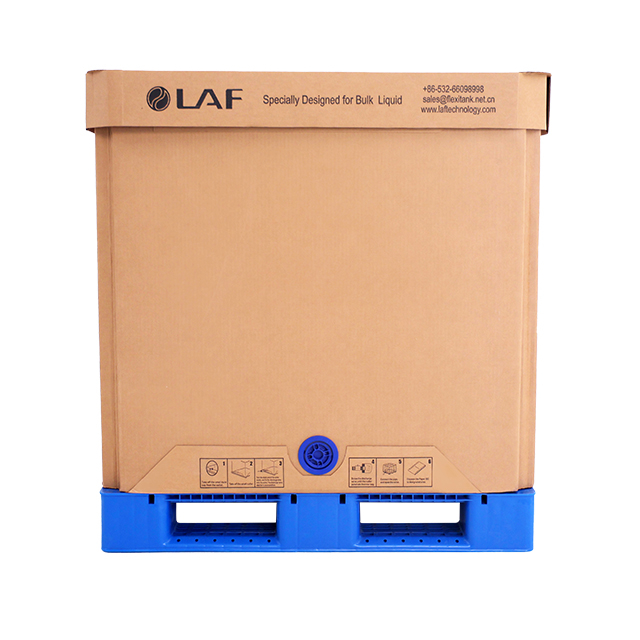

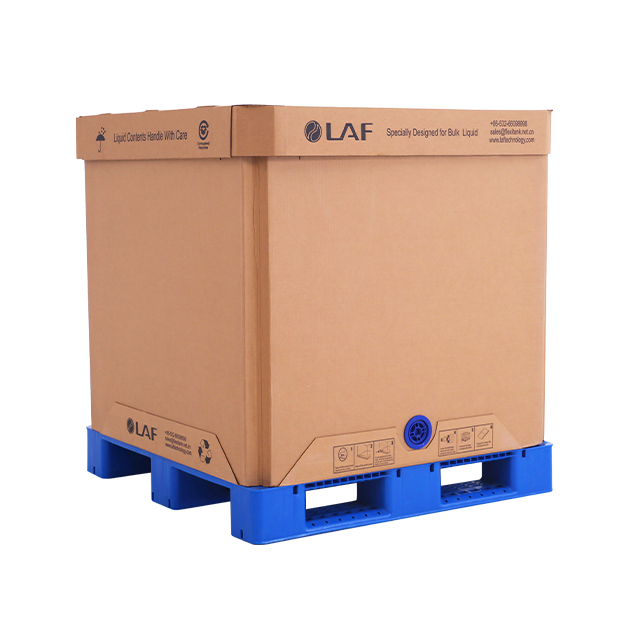

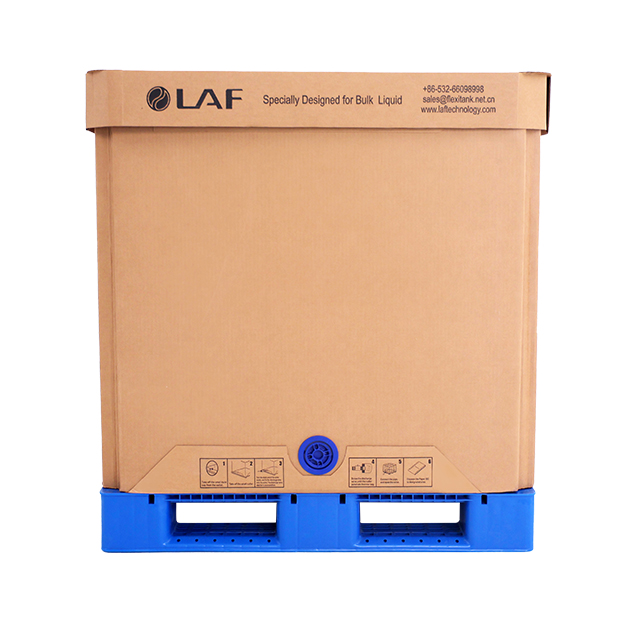

| Square Paper IBC Specifications | |
| Capacity | 1000 - 1250 L |
| Loading / Discharge Options | Top Loading & Top Discharge Top Loading & Bottom Discharge |
| Dynamic Load | 2 Layers |

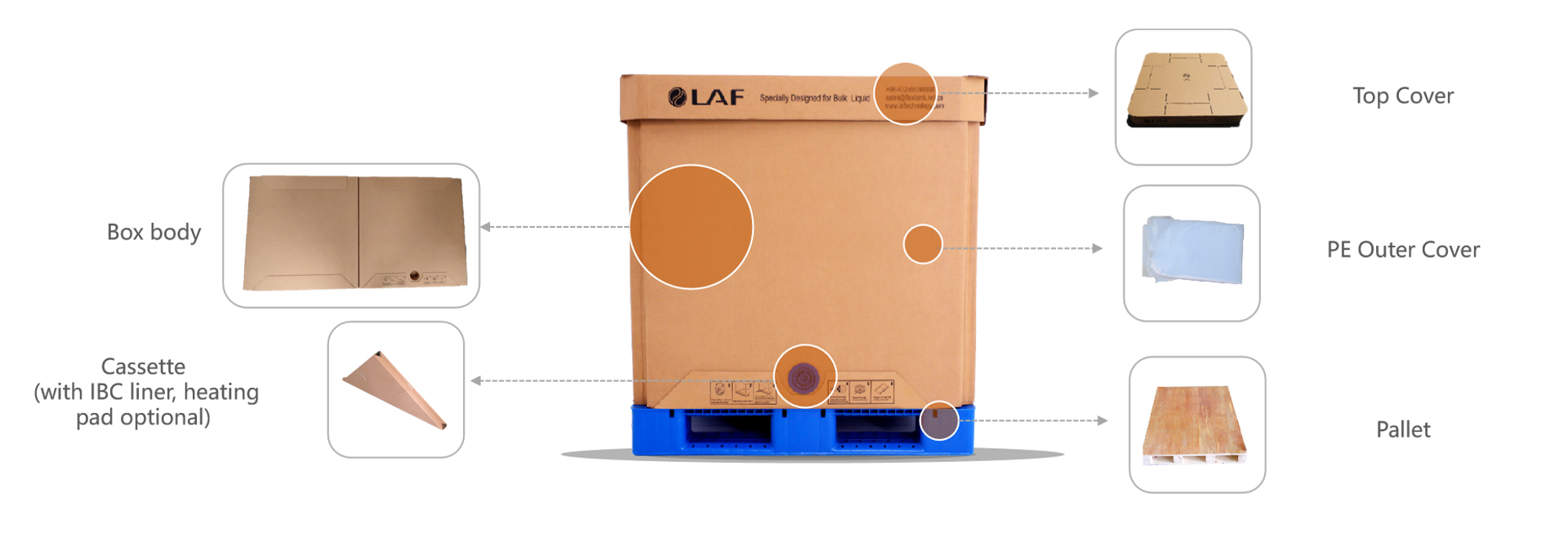

| Components | Box, Top Cover, Cassette (including Liner Bag), Pallet, Outer Cover |
| Pallet Compatibility | Plastic, Plywood, Wooden |
Easy-Form Process
Traditional paper IBC corners rely on manual folding, prone to stress concentration.
Easy-Form process distributes corner stress evenly, improving overall durability.

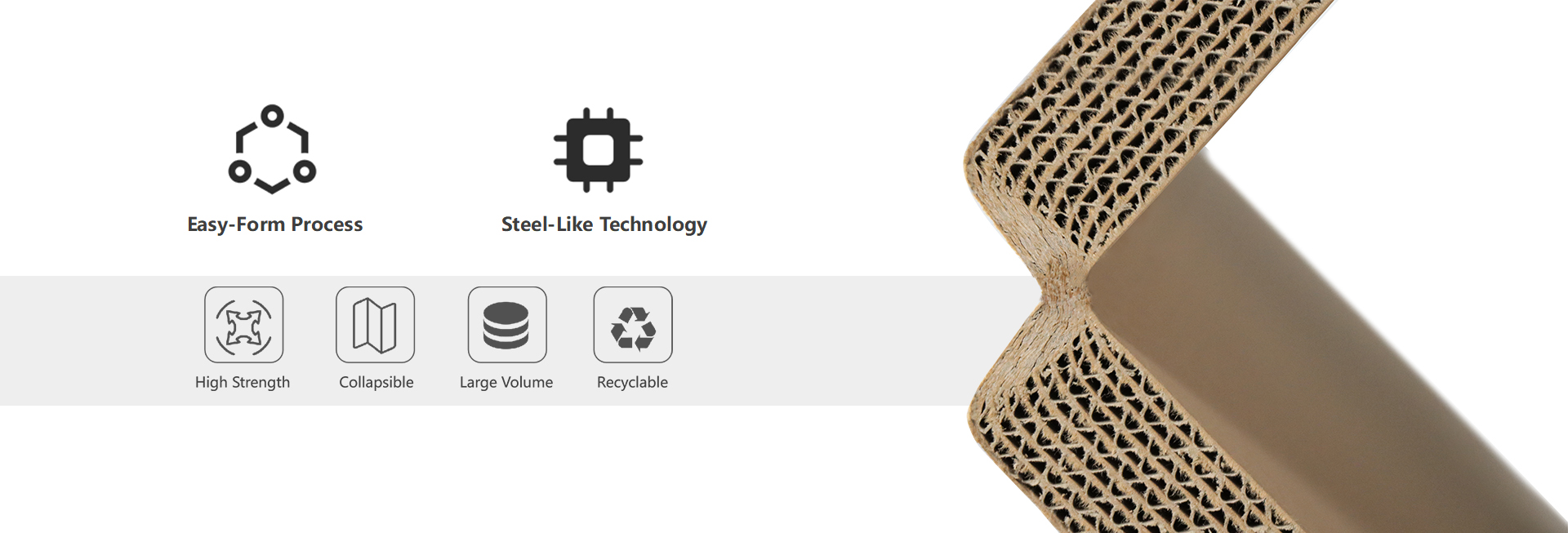

Steel-Like Technology
Breaks the limits of conventional corrugated board by applying a bionic laminated structure with cross-layer stacking,
delivering excellent isotropic strength and greatly improving overall structural integrity.

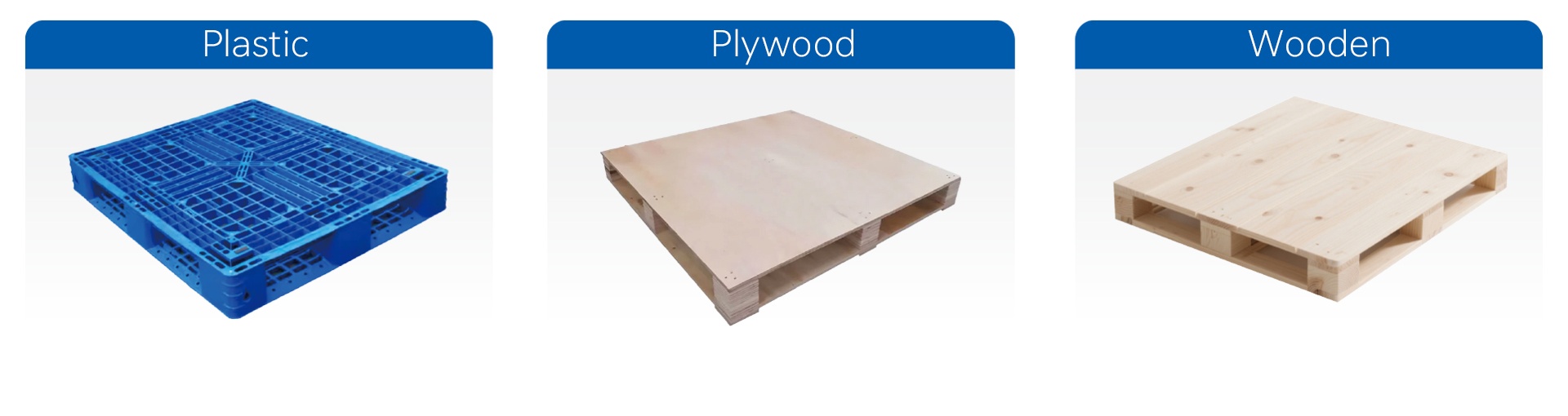

Pallet Compatibility
Compatible with plastic, plywood, or wooden pallets. For greater stability, a double-sided pallet structure is recommended.

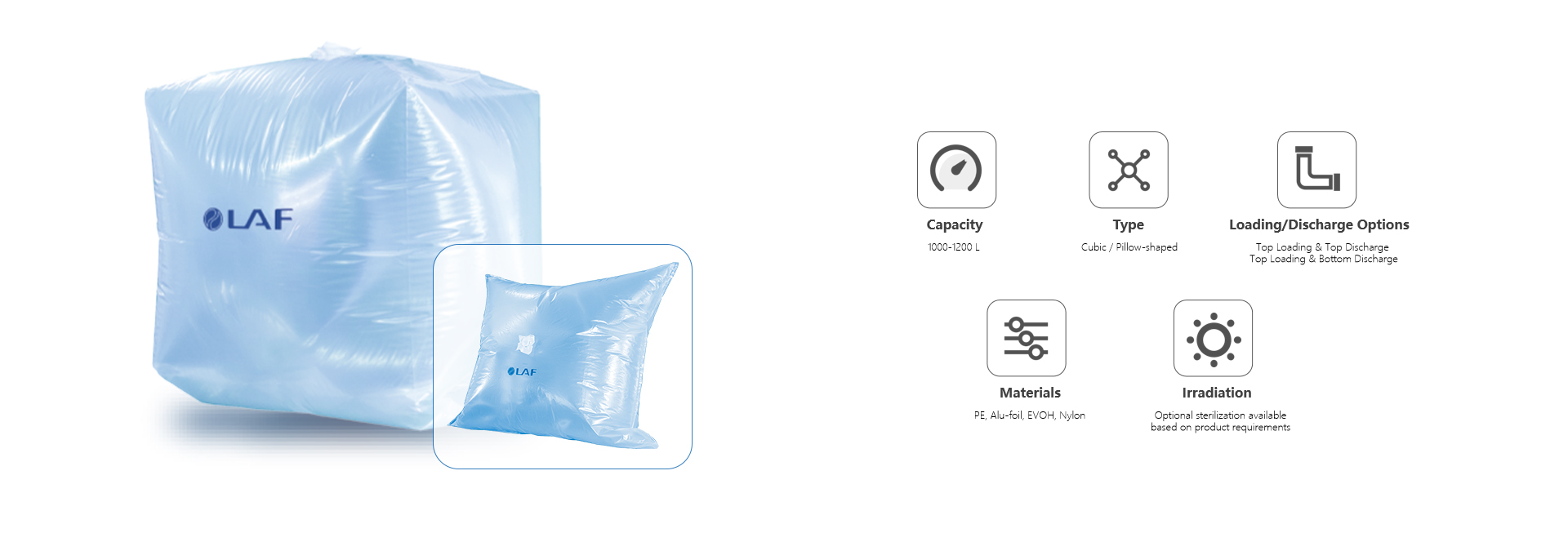

| IBC Liner Specifications | |
| Capacity | 1000 - 1200 L |
| Loading / Discharge Options | Top Loading & Top Discharge Top Loading & Bottom Discharge |
| Type | Cubic / Pillow - Shaped |
| Materials | PE, Alu-foil, EVOH, Nylon |
| Irradiation | Optional sterilization available based on product requirements |
Applicable Industries & Scenarios
Food & Beverage
Juices, edible oils, syrups, wine, sauces, etc.
Industrial Oils
Lubricants, base oils, glycols, etc.
Non-hazardous Chemicals
Emulsions, essences, plant extracts, nutrient liquids, etc.
WHY USING COLLAPSIBLE PAPER IBC?

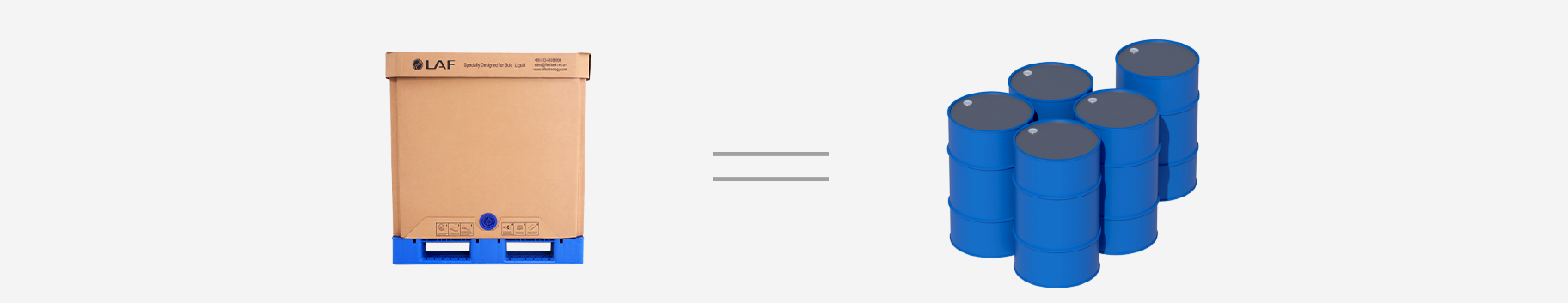

Paper IBC carries 1000L, that equals to 5x200L drums aggregated capacity.
To ship 20,000L with one 20ft container, you only need 20 Paper IBCs.
Carbon Footprint Certified
Verified under the ISO 14067 international standard for carbon footprint assessment.
Eco-Friendly & Sustainable – Achieves 50% lower carbon emissions compared with conventional plastic IBC totes.
At destination, especially in those countries with strictenvironmental laws,
this disposable Paper lBC is a verypopular packaging style than drums or bottle-in- cageIBCS,
liquid commodity buyers won't be bored withhigh disposal expense of used containers
Equipment for Liquid Loading/ Unloading
Support Frame
Loading/ Unloading Valve
Adaptor

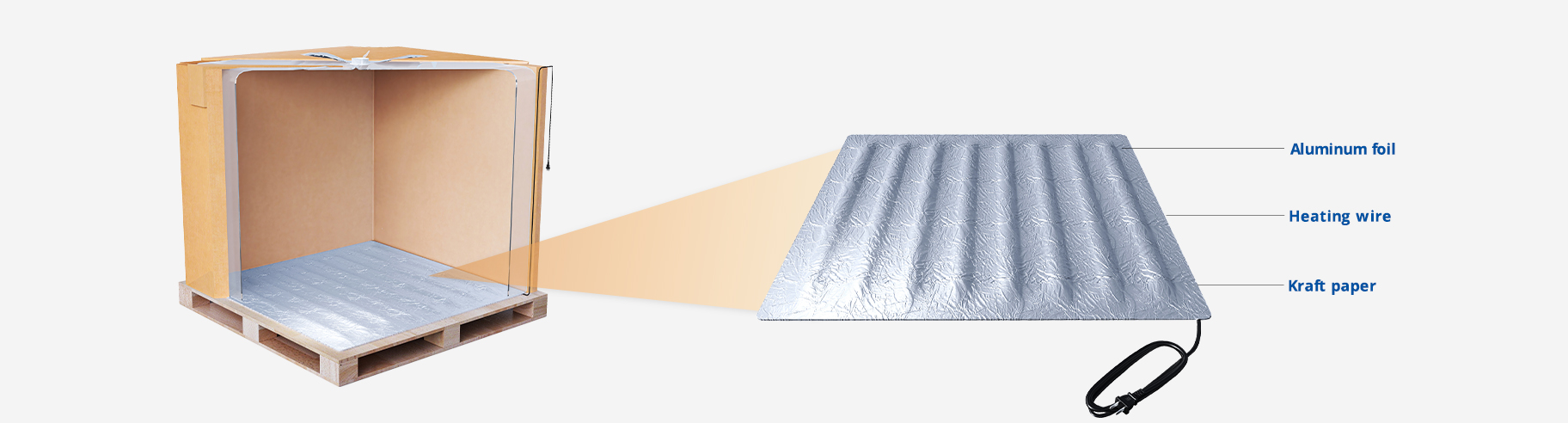

For liquid commodity that would crystallize or solidify during transit, we provide an alternative of electric heating pad for customers.
This heating pad can be pre-installed at the bottom of the PE liner bag before loading liquid commodity into the liner bag,
after shipment arrival, it can help to heat up and melt the product with electricity power.
| Item | Technical Data |
Voltag | 220V or 110V |
Output Power | 1100W |
| Bi-metal Thermostat | 55/65°C |
| Layout Dimension | 960mmx870mm |
Power Cable | 1.8m power cable |
